Burgener Nebulizers: |
We continue to work at maintaining our prices as low as possible. Inflation on some of our parts has been over 100%, but others are actually lower in 2023 than in 2022. We have been able to hold our increases to about 2% for 2024 compared to 2023. As usual, especially with the present currency variations and strange economic times, we reserve the right to change prices at any time. Non US prices are based on the exchange rate of the day. Shipping and Taxes are extra.
|
| NOTE: we accept both VISA and MC, but we have Canadian accounts, and we must convert the prices to Canadian equivalents when processing VISA and MC. Such conversions will be at the present exchange rates. We try to calculate it so that the converted US$/Euro/GBP price will be equal to or lower than the US list prices.
|
.
|
All Burgener Nebulizers are made with the patented Enhanced Parallel Path Method.
US Patent # 6,634,572; Canadian Patent # 2,384,201
|
|
|
Nebulizers |
|
|
To see the manual, click on the image of the nebulizer: |
Nebulizers for ICP and ICP/MS
|

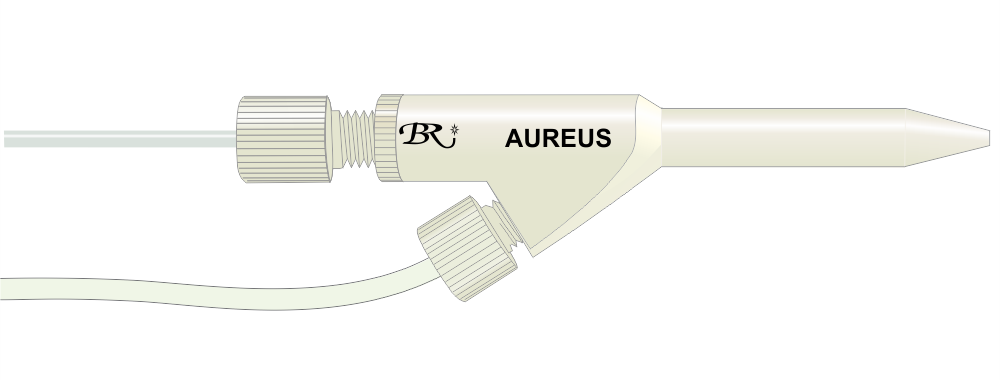

NEW for 2023! Aureus
|
 |
|
| The Aureus is designed for ICP/MS and is 100% High Purity PFA including the sample lines, 1/4-28 sample line fittings, the body and the inner capillaries. As with the Teflon Mira Mist, it can be used for any liquid. It has 250 micron ID capillaries, the same as in the PFA 260. It runs sample flow rates from 50 ΅l/min up to 2 ml/min. Fits regular chambers as a direct replacement for glass concentric nebulizers. Operates on standard pressures of 35 - 45 psi, with 1 L/min at 50 psi. |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Aureus |
250 |
AU 6000 |
$ 1,250.00 |
|
|

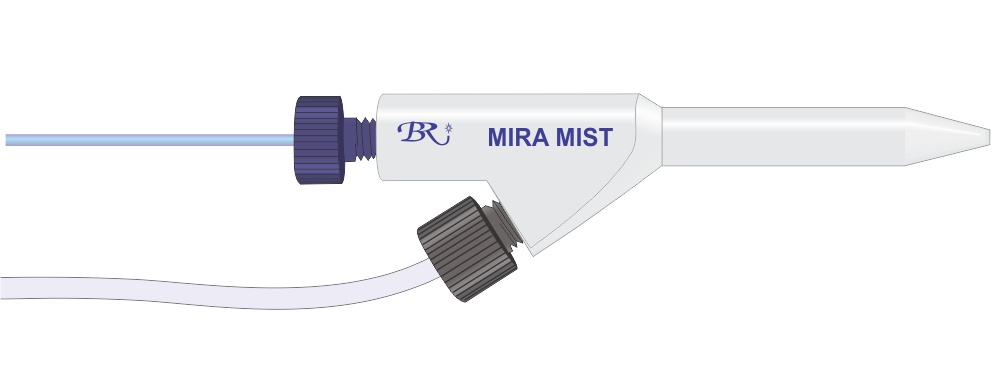

Teflon Mira Mist |
 |
|
| The Teflon Mira Mist is designed for all ICP systems both OES and MS. They handle sample flow rates from 200 ΅l/min up to 2.5 ml/min. Their mist has droplet sizes in the 1-10 micron range, and the large inner capillaries can handle high levels of particulates in the samples. They fit regular chambers as a direct replacement for glass concentric nebulizers. The Mira Mist operates on standard pressures of 35 - 55 psi. The Teflon Mira Mist can be used for any liquid. Salting is very rare, but can occur over long periods of time, especially with high Sodium levels in the solution. Such salting can be cleared easily with a dip in 5 - 10% HF, (Caution: Be careful when handling HF. It soaks into the skin before you feel it burning, and in low concentrations it looks and feels like water.) |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Teflon Mira Mist |
500 |
TMM 3500 |
$ 1,200.00 |
|
|

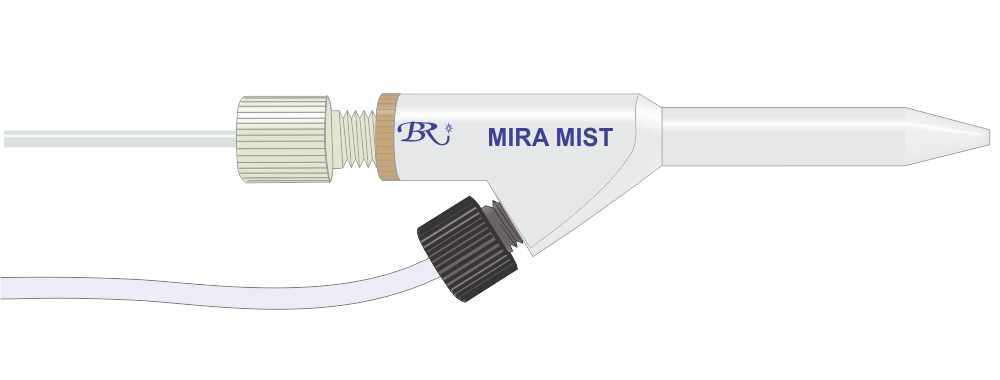

Teflon Mira Mist II |
 |
|
| Same as the Teflon Mira Mist, but with a 1/4-28 thread at the back for the sample line. Made to simplify connections to flow injection and similar attachments. Uses Idex chromatographic fittings, and 1/16 (1.5mm) sample lines. Can operate on sample flow rates of 200 ΅l/min up to 2.5 ml/min. Excellent mist, and can handle high level of particulates in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. Operates on standard pressures of 35 - 45 psi. The Teflon Mira Mist can be used for any liquid. Salting is very rare, but can occur over long periods of time, especially with high Sodium levels in the solution. Such salting can be cleared easily with a dip in 5 - 10% HF, (Caution: Be careful when handling HF. It soaks into the skin before you feel it burning, and in low concentrations it looks like water.) |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Peek Mira Mist |
500 |
TMM-2 |
$ 1,200.00 |
|
|
PEEK Mira Mist |
 |
|
| Same as the Teflon Mira Mist, but easier to make than the Teflon Mira Mist, so you save a little. Works for most samples, but not concentrated acids, and not some organic solvents. Still has HP PFA Teflon capillaries for the samples and for the gas. Standard pressure (45 psi), low sample flow, enhanced parallel path design. Can operate on sample flow rates from 200 ΅l/min up to 2.5 ml/min. Excellent mist, and can handle high level of particulates in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Peek Mira Mist |
500 |
PMM 4000 |
$ 1,100.00 |
|
|

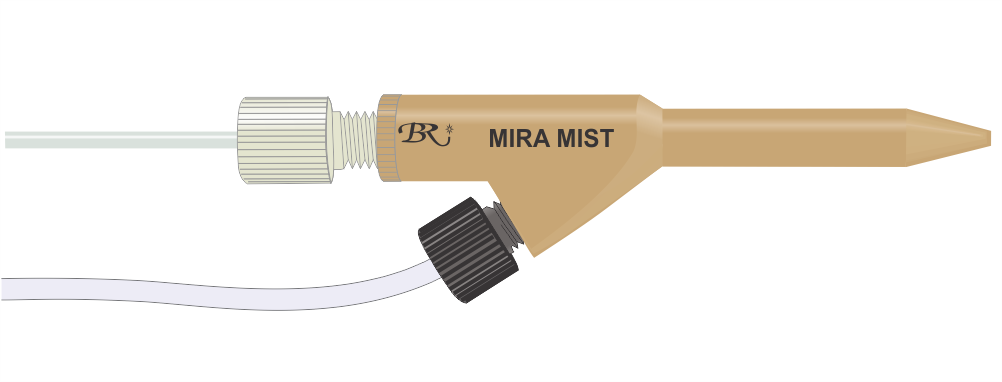

PEEK Mira Mist II |
 |
|
| Same as the PEEK Mira Mist, but with a 1/4-28 thread at the back for the sample line. Made to simplify connections to flow injection and similar attachments. Uses Idex chromatographic fittings, and 1/16 (1.5mm) sample lines. Works for most samples, but not concentrated acids, and not some organic solvents. Has HP PFA Teflon capillaries for the samples and for the gas. Standard pressure (45 psi), low sample flow, enhanced parallel path design. Can operate on sample flow rates from 200 ΅l/min up to 2.5 ml/min. Excellent mist, and can handle high level of particulates in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Peek Mira Mist II |
500 |
PMM-2 |
$ 1,100.00 |
|
|
T 2100 |
 |
|
Huge Sample Capillary: 750 microns / 1/32 inch. Designed as replacement for T2002 and BTN. Essentially unpluggable with un-dissolved particles. Can operate on sample flow rates from 500 ΅l/min up to 3.0 ml/min. Excellent mist, but not quite as good as Mira Mist, but better than most concentrics. Can handle very high level of particles in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. Operates on standard pressures of 30 - 45 psi.
The T 2100 can be used for any liquid. Salting is very rare, but can occur over long periods of time, especially with high Sodium levels in the solution. Such salting can be cleared easily with a dip in 5 - 10% HF, (Caution: Be careful when handling HF. It soaks into the skin before you feel it burning, and in low concentrations it looks and feels like water.) |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| T 2100 |
750 |
T 2100 |
$ 1,100.00 |
|
|

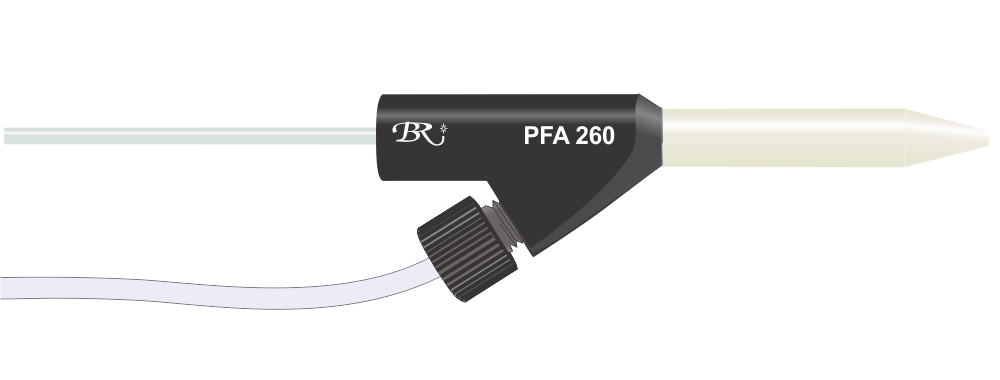

PFA 250 & PFA 260 |
 |
|
Low Flow design for ICP/MS. PFA nose and inner capillaries and all wetted parts. Peek body for strength and longevity. Sample Capillary: 250 microns. Designed for ICP/MS where low flow is desired and PFA only touching the liquids is desired. Can operate on sample flow rates from 50 ΅l/min up to 2 ml/min. Excellent mist, seems to be more stable, and have lower %RSD than a Mira Mist.
The PFA 250 is set to run higher gas flows for the PE NexION which typically runs at 1.2 L/min. It uses 45 psi for 1 L/min.
The PFA 260 is set to run at higher pressure than a Mira Mist, but well within most instruments standard ranges. It uses about 40 psi for .65 L/min or 60 psi for 1 L/min.
The PFA 250 and PFA 260 can be used for any liquid. |
| Description |
L/min at 50 psi
| ID (Microns) |
Catalog # |
US$ Price |
| PFA 250 |
1.1 L/min
| 250 |
PFA 250 |
$1,300.00 |
| PFA 260 |
0.8 L/min
| 250 |
PFA 260 |
$1,300.00 |
|
|

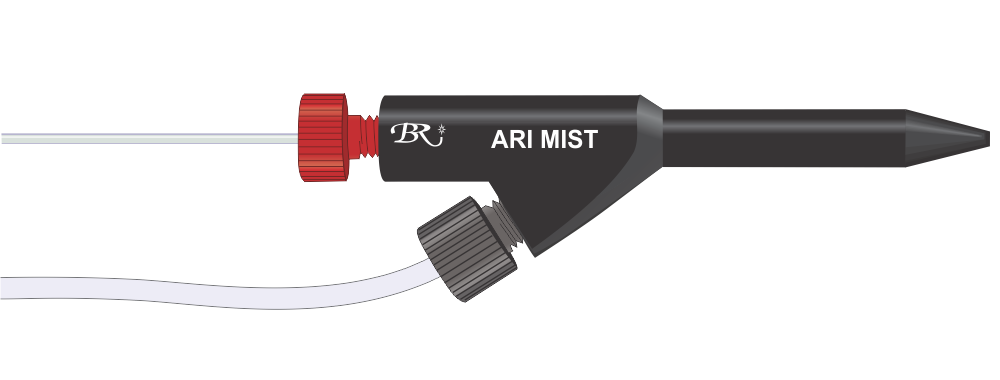

Ari Mist |
 |
|
|
Very low sample flow, enhanced parallel path design. Standard pressure (40 - 50 psi). Black PEEK body, Teflon sample and gas capillaries. Can operate on sample flow rates from 50 ΅l/min up to 1.5 ml/min. Good for ICP and ICP/MS. Only for samples that are particulate free. Fits regular chambers as a direct replacement for glass concentric nebulizers.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Ari Mist |
225 |
AM 5000 |
$ 1,200.00 |
|
|

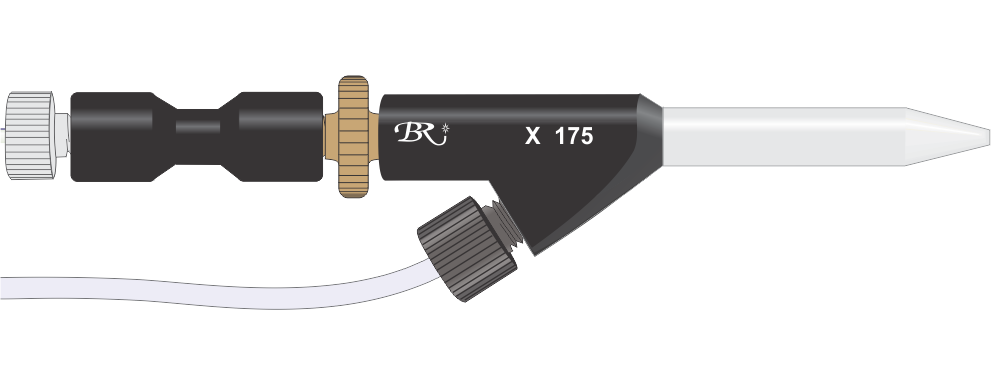

X175 and NX-175 |
 |
|
Low Flow design for ICP/MS. Peek inner capillaries, PTFE nose, Peek Body for strength and longevity. Sample Capillary: 175 microns. Can operate on sample flow rates from 50 ΅l/min up to 1 ml/min. Excellent mist, is more stable and has lower %RSD than an Ari Mist.
The X-175 is set to run at a bit higher pressure than a Mira Mist, but well within most instruments standard ranges. Uses about 40 psi for .65 L/min
The NX 175 is set to run higher flows as required for the PE NexION and Varian / Brooker ICP/MS with 1.2 L/min at 50 psi.
Note: This nebulizers sample flow rates are much lower than normal for ICP OES.
|
| Description |
L/min at 50 psi
| ID (Microns) |
Catalog # |
US$ Price |
| NX-175 |
1.2 L/min
| 175 |
X-175 |
$1,300.00 |
| X-175 |
0.8 L/min
| 175 |
NX-175 |
$1,300.00 |
|
|

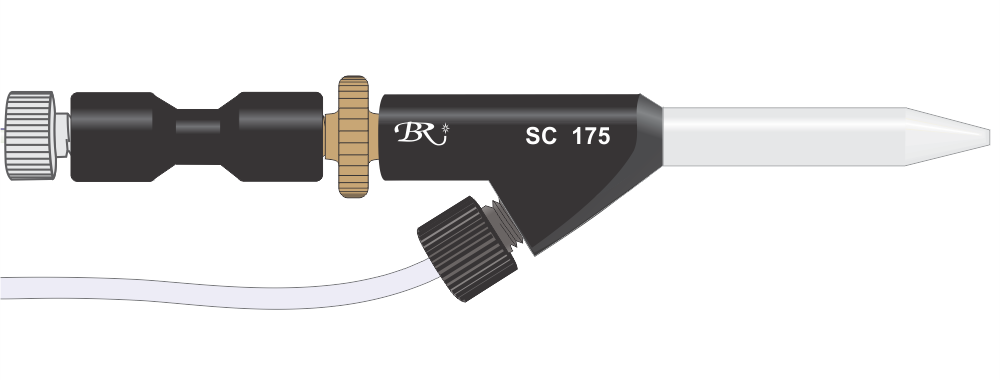

SC175 |
 |
|
Very Low Flow designed specifically for single cell analysis for ICP/MS. Peek inner capillaries, PTFE nose, Peek Body for strength and longevity. Sample Capillary: 175 microns. Can operate on sample flow rates from 5 ΅l/min up to 1 ml/min.
The SC-175 is a variation of the X-175, but tuned for very low flow capability.
The SC-175 is set to run at a bit higher pressure than a Mira Mist, but well within most instruments standard ranges. Uses about 40 psi for .65 L/min
Note: This nebulizers sample flow rates are much lower than normal for ICP OES.
|
| Description |
L/min at 50 psi
| ID (Microns) |
Catalog # |
US$ Price |
| SC-175 |
0.8 L/min
| 175 |
SC-175 |
$1,600.00 |
|
|

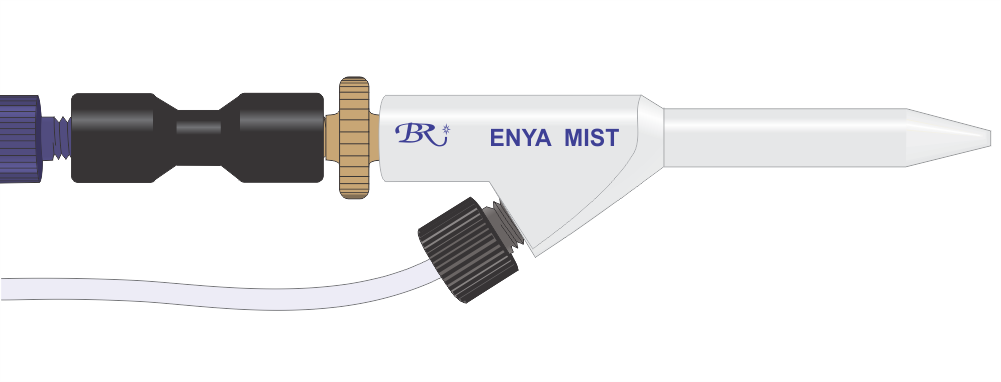

ENYA Mist |
 |
|
|
Ultra low sample flow, enhanced parallel path design. Standard Pressure (50 psi). Our lowest flow ICP/MS nebulizer. Can operate on sample flow rates from 200 nanoliters/minute to 200 ΅l/min. Designed for ICP/MS - HPLC interface and tiny samples. Produces very low oxides in ICP/MS. Can NOT handle high level of particulates in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. Straight chambers are better than cyclonics - sample drops are lost in cyclonics on the wall beside the injection point.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Enya Mist |
60 |
EM 7000 |
$2,500.00 |
|
|

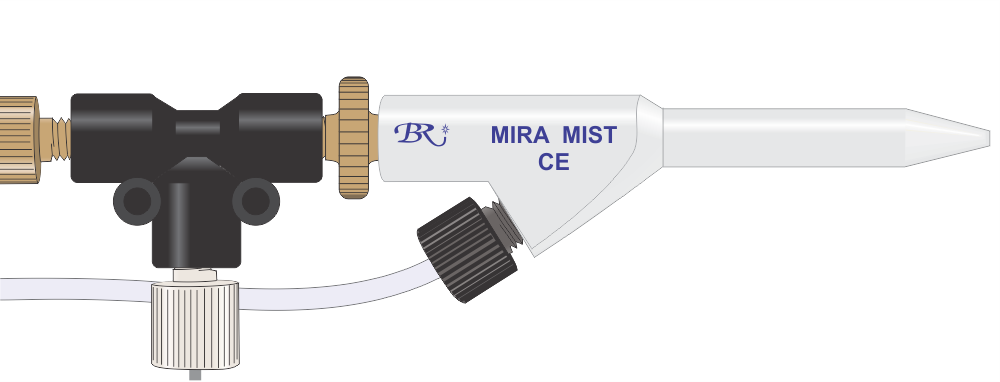

Mira Mist CE |
 |
|
|
Designed for ICP/MS - CE interface. Higher pressure (80-90 psi), Very low sample flow (10 ΅l/min or less), enhanced parallel path design. Can operate on sample flow rates from 10 ΅l/min up to 2.5 ml/min. With Alcohol solutions can operate down to 1 ΅l/min. Excellent mist, can handle high level of particulates in sample. Fits regular chambers as a direct replacement for glass concentric nebulizers. Designed for CE / ICP / MS analysis. Allows CE capillary to extend to tip of nebulizer for zero suction, zero back pressure CE interfacing with ICP / MS. Works best with straight chambers.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| Mira Mist CE |
500 |
MM CE |
$4,000.00 |
|
|
|
|

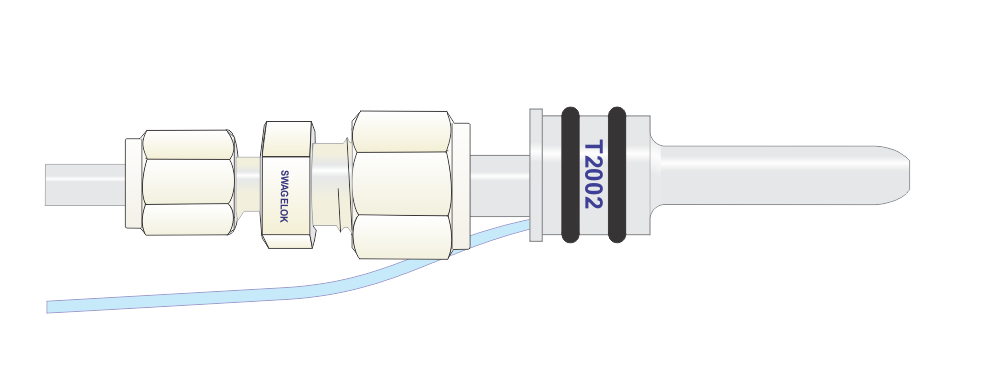

T2002 |
 |
|
|
Our old original standard nebulizer. Works well on most instruments. Fits most chambers. Best results are with Cyclonic Chambers. The T2002 was scheduled to be discontinued in Jan, 2010. However, we have decided to continue to have it available as long as there is a demand for them, and the one person who can make them continues to do so. For most applications, the T2100 is a better nebulizer since it handles larger particles, lasts longer, and provides virtually the same intensities and stability. As of Jan, 2024, we are continuing to produce the T2002 to meet demand.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| T2002 |
450 |
T2002 |
$1,000.00 |
|
|
|
|
|
Industrial Nebulizers |

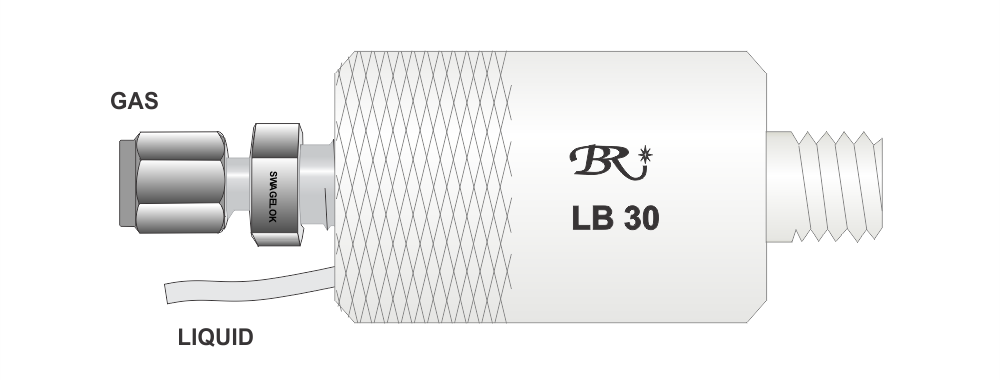

LB 30 |
 |
|
|
Teflon Low Pressure (35 - 45 psi), High sample flow, Enhanced Parallel Path design. Designed for Industrial Sprays. Virtually unpluggable. Can run saturated solutions without salting up.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| LB 30 |
2000 |
LB 30 |
$1,000.00 |
|
|

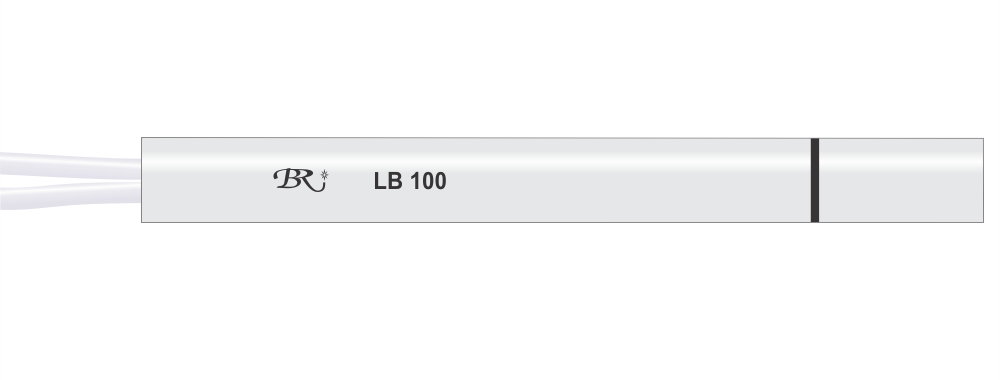

LB 80 & LB 100 |
 |
|
|
Teflon, High sample flow, High gas flow (50 - 100 L/min), Enhanced Parallel Path design. Designed for Industrial Sprays. Virtually unpluggable. Can run saturated solutions without salting. Still maintains small droplets with a median of 10 - 20 microns diameter. To differentiate the gas line and liquid line, we use a 4mm gas line and a 3 mm liquid line. The LB 80 and 100 are identical except that the LB 100 gas orifice is a bit larger ID than for the LB 80. |
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| LB 80 |
3000 |
LB 80 |
$1,200.00 |
| LB 100 |
3000 |
LB 100 |
$1,300.00 |
|
|
SS 50 |
 |
|
Stainless Steel Industrial Nebulizer for hot environments, any length possible, 1/8" OD.
Low Pressure (45 psi) to very high pressure (5,000 psi), Low sample flow to high sample flow (10 ΅l/min to 5 mL/min), Enhanced Parallel Path design. Designed for Industrial Sprays.
|
| Description |
ID (Microns) |
Catalog # |
US$ Price |
| SS 50 |
2000 |
SS 50 |
$1,250.00 |
|
|
. |
|
|
|
|
|
Gas Lines & Fittings |
Gas Line Fittings for Burgener Nebulizers |
|
|
Burgener Nebulizers such as our Mira Mist and Ari Mist nebulizers use 2 mm gas lines and Idex 10/32 finger tight fittings for the gas lines. Although this allows for simple attachment of GC/LC/CE systems, it is not the standard for other nebulizers. To ensure simple attachments to your instruments gas output connections, we have an extensive array of fittings available.
Gas line fittings are usually included with the nebulizer. Please note that we try to send the correct fittings with the nebulizers, but there are many to select from, and we sometimes send the wrong one. If you receive the wrong fitting, please use the following list to correctly identify your gas fitting and call us for a free replacement.
|
| |
| Instrument | Burg Res Part Number |
| . | . |
| Agilent / HP | Gas line: BRG 204
Sample Line: BRC 204, BRC 204A or BRC 2000 |
| Agilent 4200 series ICP OES | Gas line: BRG 306
Sample line: BRC 204 or BRC 204A |
| Agilent 5100, 5110 ICP OES | Gas line: BRG 200
Sample line: BRC 204, BRC 204A or BRC 2000 |
| Agilent 7700, 7800, 7900, 8800, 8900
Series | Gas line: BRG 204
Sample line: BRC 204, BRC 204A or BRC 2000 |
| Agilent / Varian ICP | Gas line: BRG 306
Sample Line: BRC 204, BRC 204A or BRC 2000 |
| Analytic Jena | BRG 204 |
| Bruker ICP/MS | BRG 306 |
| Finnigan including the Finnigan Neptune | BRG 306 |
| GBC | BRG 306 |
| Hitachi High-Tech Science ICP | BRG 106 |
| JY | BRG 204 |
| Leeman | BRG 306 |
| Nu Plasma ICP-MS | BRG 204 |
| PE / Sciex Elan ICP/MS (1/4" Swagelok gas lines) | BRG 206 |
| PE NexION 300 & 350 ICP/MS | BRG 206 |
| PE NexION 1000, 2000, 5000 ICP/MS | BRG 203 |
| PE Optima 3000 series | BRG 206 |
| PE Optima 2000, 4000, 5000, 7000, & 8000 series | BRG 308 |
| PE Avio 200, 220, 500, 550, 560 | BRG 308 |
| Shimadzu ICP/MS | BRG 303 |
| SII NanoTechnology ICP | BRG 106 |
| Spectro | BRG 309 |
| Thermo Scientific - TJA ICP (Luer Lock fitting) | BRG 305
NOTE: As of 2024, we will not be including one with each nebulizer sent to Thermo. If you need one, please let us know and we will send one to you at no charge. |
| Thermo Scientific - iCAP 6000 series ICP | BRG 204 |
| Thermo Scientific - iCAP 7000 series ICP | Gas Line: BRG 204
Sample Line for 7000: BRC 203
Sample Line for 7200, 7400, 7600: BRC 204 |
| Thermo Scientific - ICP/MS X series | BRG 204 |
| Thermo Scientific - ICP/MS iCAP Q, iCAP TQ, iCAP RQ | BRG 204 |
| Thermo Scientific - Finnigan Neptune ICP/MS | BRG 306 |
| Thermo Scientific - VG Elemental ICP/MS pre 2002 | BRG 307 |
| Varian - ICP | BRG 306 |
| . | . |
|
. |
|
|
|
|
|
| 10/32 to Swagelok |
| Description |
Catalog # |
US$ Price |
|
BRG 103
|
 |
|
|
1/8" Adapter for 1/8" gas lines.
|
BRG 103 |
$45.00 |
|
BRG 104
|
 |
|
|
4 mm Adapter for 4 mm gas lines.
|
BRG 104 |
$45.00 |
|
BRG 106
|
 |
|
|
1/4" Adapter for 1/4" gas lines.
|
BRG 106 |
$45.00 |
|
|
|
| 10/32 to Straight Tube |
| Description |
Catalog # |
US$ Price |
|
BRG 200
|
 |
|
4 mm FEP Adapter for older Agilent ICP/MS
that use a barb fitting on the side of the instrument to attach the gas line.
|
BRG 200 |
$ 55.00 |
|
BRG 203
|
 |
|
|
1/8" PEEK Adapter, for PE ICP/MS instruments.
|
BRG 203 |
$40.00 |
|
BRG 203-SS
|
 |
|
|
1/8" PEEK Adapter, for PE ICP/MS instruments, with attached Stainless Steel Swagelok cap.
|
BRG 203 |
$80.00 |
|
BRG 204
|
 |
|
|
4mm PEEK Adapter for Agilent, Thermo ICP/MS, Thermo iCap Series, JY, VG X-series instruments.
|
BRG 204 |
$40.00 |
|
BRG 206
|
 |
|
|
1/4" PEEK Adapter for PE Optima 3000 series, PE Sciex ICP/MS.
|
BRG 206 |
$45.00 |
|
BRG 214
|
 |
|
|
4 mm PEEK Adapter as supplied with JY nebulizers. Not for other instruments.
|
BRG 214 |
$50.00 |
|
BRG 215
|
 |
|
|
4 mm HP PFA Adapter as supplied with Aureus nebulizers.
|
BRG 215 |
$50.00 |
|
|
|
| 10/32 to Quick Release |
| Description |
Catalog # |
US$ Price |
|
BRG 303
|
 |
|
|
Quick Release for Shimadzu
|
BRG 303 |
$ 55.00 |
|
BRG 304
|
 |
|
|
Luer Lock / Quick Release
|
BRG 304 |
$65.00 |
|
BRG 305
|
 |
|
|
Luer Lock / Quick Release for older TJA / Thermo ICP
|
BRG 305 |
$65.00 |
|
BRG 306
|
 |
|
|
Quick Release for Agilent ICP, Bruker, Finnigan, GBC, Leeman, Varian.
|
BRG 306 |
$45.00 |
|
BRG 308
|
 |
|
|
Quick Release for PE Optima 2000 and 4000 series.
|
BRG 308 |
$45.00 |
|
BRG 309
|
 |
|
|
Quick Release for Spectro.
|
BRG 309 |
$45.00 |
|
|
|
| 4mm Festo/Pisco Pneumatic Quick Release |
| Description |
Catalog # |
US$ Price |
|

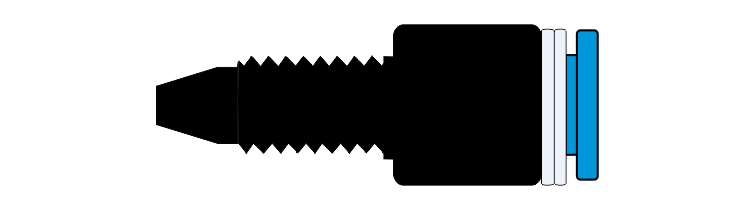

BRG 404
|
 |
|
Quick Release for 4 mm gas line.
Same style as on many glass nebulizers such as GE EzyLok.
Replaces MM 1020 gas line & BRG 204.
4 mm gas line not included.
|
BRG 404 |
$55.00 |
|
|
|
| 2 mm Gas Line |
| Description |
Catalog # |
US$ Price |
|
MM 1020
|
 |
|
|
2 mm gas line with Idex fingertight fittings for most Burgener Nebulizers.
|
MM 1020 |
$43.00 |
|
BRC 20
|
 |
|
|
Black PEEK Idex fingertight fitting for 2mm OD gas or sample lines. Used as the standard fitting for our MM 1020 gas lines.
|
BRC 20 |
$ 17.00 |
|

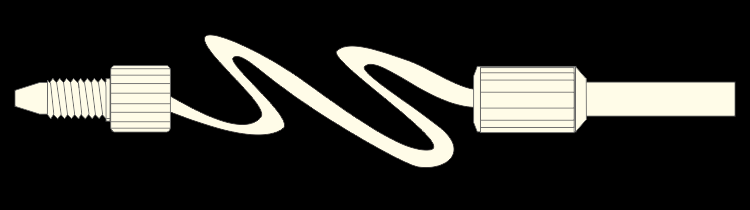

MM 1030
|
 |
|
|
2 mm gas line with HP PFA Idex style fingertight fittings on one end, 4mm BRG215 HP PFA fitting on other end, for Aureus Nebulizers.
|
MM 1030 |
$65.00 |
|
BRC 30
|
 |
|
|
Natural HP PFA Idex style fingertight fitting for 2mm OD gas lines. Used as the fitting for our MM 1030 gas lines for the Aureus Nebulizers. These are press fit, and require stretching the gas line to pull through.
|
BRC 30 |
$ 30.00 |
|
BRG 215
|
|
|
|
4 mm HP PFA Adapter as supplied with Aureus nebulizers. The gas line is press fit and the fitting is designed to be supplied as part of the MM 1030.
|
BRG 215 |
$50.00 |
|
. |
|
|
|
|
|
Sample Lines & Fittings |
Sample Line Fittings for Burgener Nebulizers |
|
|
| Sample Line Fittings |
| Description |
Catalog # |
US$ Price |
|
BRC 3
|
 |
|
|
Blue Idex fingertight fitting for 0.044" OD sample lines. These are press fit, and require stretching the sample line to pull through.
|
BRC 3 |
$ 10.00 |
|
BRC 4
|
 |
|
|
Black Idex fingertight fitting for 0.044" OD sample lines. These are press fit, and require stretching the sample line to pull through.
|
BRC 4 |
$ 12.00 |
|
BRC 5
|
 |
|
|
KelF Natural Idex fingertight fitting for 0.062" OD sample lines. These are press fit, and require stretching the sample line to pull through.
|
BRC 5 |
$ 12.00 |
|
BRC 6
|
 |
|
|
PEEK Natural Idex fingertight fitting (Idex part # F120) for 0.0625" OD sample lines. These are wider than 0.0625, and require tightening to hold the sample line.
|
BRC 6 |
$ 12.00 |
|
BRC 9
|
 |
|
|
Red Idex fingertight fitting for 0.0625" OD sample lines. Used with our BRC 209 tubing. These are press fit, and require stretching the sample line to pull through.
|
BRC 9 |
$ 12.00 |
|
BRC 20
|
|
|
|
Black PEEK Idex fingertight fitting for 2mm OD gas or sample lines. Used as the standard fitting for our MM 1020 gas lines. These are press fit, and require stretching the gas line to pull through.
|
BRC 20 |
$ 17.00 |
|

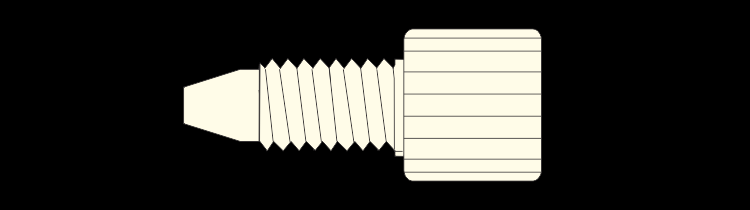

BRC 30
|
|
|
|
Natural HP PFA Idex style fingertight fitting for 2mm OD gas lines. Used as the fitting for our MM 1030 gas lines for the Aureus Nebulizers. These are press fit, and require stretching the gas line to pull through.
|
BRC 30 |
$ 30.00 |
|
BRC 640
|
 |
|
Adapter for ESI FAST system mixing T.
For 0.0625" OD sample lines such as BRC 204.
1/4-28 to 10/32 fingertight adapter fitting with BRC 6
(Idex part # P640)
|
BRC 640 |
$ 75.00 |
|
|
|
| Alternative Adapters for Gas or Sample Lines - Standard IDEX / Idex Parts. (Can also be obtained from IDEX at www.idex-hs.com) |
| Description |
Catalog # |
US$ Price |
|
F-120
|
 |
|
|
PEEK Natural Idex fingertight fitting for 1/16" (0.0625") OD sample lines.
|
F-120 |
$ 17.00 |
|
P-728-01
|
 |
|
|
Black PEEK Idex T fingertight fitting for Mira Mist CE.
|
P-728-01 |
$44.00 |
|
P-200N
|
 |
|
|
Natural Tefzel Ferrule for 1/16 tubing. Fits in P 245 and P 230 Idex 1/4 28 fittings. |
P-200N |
$ 5.50 |
|
P-230
|
 |
|
|
Natural (brown) PEEK 1/4 28 Nut for 1/16 tubing. Requires ferrule such as P 200N. |
P-230 |
$ 5.50 |
|
P-230BLK
|
 |
|
|
Black PEEK 1/4 28 Nut for 1/16 tubing. Requires ferrule such as P 200N. |
P-230BLK |
$ 5.50 |
|
P-245
|
 |
|
|
Natural PFA 1/4 28 Nut for 1/16 tubing. Requires ferrule such as P 200N. |
P-245 |
$ 5.50 |
|
P-307
|
 |
|
|
M6 Idex fitting for 2 mm gas or sample lines. Fits in P650 Idex adapter. Needs a P342 ferrule. |
P-307 |
$ 5.50 |
|
P-308
|
 |
|
|
1/4 28 Idex fitting for 1/8" gas or sample lines. Fits in P652 Idex adapter. Needs a P300 ferrule. |
P-308 |
$ 5.50 |
|
P-300
|
|
|
|
Ferrule for P308 Idex fitting for 1/8" gas or sample lines.
|
P-300 |
$ 5.50 |
|
P-342
|
|
|
|
Ferrule for P307 Idex fitting for 2mm gas or sample lines. |
P-342 |
$ 5.50 |
|
P-650
|
 |
|
|
M6 Idex Adapter for 1/8", 2mm and 1/16" gas or sample lines. Fits in place of the MM 1020 gas line or in place of the sample line. If bought from Idex directly, the small bit protruding at the tip must be cut off. Allows M6 fittings to be used to attach gas and sample lines directly to the nebulizer.
|
P-650 |
$ 22.00 |
|
P-652
|
 |
|
|
1/4 28 Idex Adapter for 1/8" and 1/16" gas or sample lines. Fits in place of the MM 1020 gas line or in place of the sample line. If bought from Idex directly, the small bit protruding at the tip must be cut off. Allows 1/4 28 fittings to be used to attach gas and sample lines directly to the nebulizer.
|
P-652 |
$ 22.00 |
|
P-652-Kel-F
|
 |
|
|
Kel-F 1/4 - 28 Idex Adapter for 1/16" sample lines for Agilent Instruments. Allows 1/4 28 fittings to be used to attach gas and sample lines directly to the nebulizer. |
P-652-Kel-F |
$ 44.00 |
|
. |
|
|
|
|
|
| Sample Line |
| Description |
Catalog # |
US$ Price |
|
BRC 103
|
 |
|
|
3 meters of .044" OD X .020" ID Clear FEP or PTFE Tubing for sample lines.
|
BRC 103 |
$ 54.00 |
|
BRC 104
|
|
|
|
3 meters of 1/16" (.0625") OD X .020" ID FEP or PTFE Tubing for sample lines.
|
BRC 104 |
$ 54.00 |
|
BRC 105
|
|
|
|
3 meters of 2mm OD X 1mm ID FEP or PTFE Tubing for gas lines. |
BRC 105 |
$ 54.00 |
|
BRC 108
|
|
|
|
3 meters of .062" OD X .030" ID FEP Extra Wide ID Tubing for T2100 sample lines. Causes pulsing of sample flow unless running 1 ml/min or more. |
BRC 108 |
$ 54.00 |
|
BRC 109
|
|
|
|
3 meters of .062" OD X .010" ID PFA Tubing for X-175 & NX-175 sample lines. |
BRC 109 |
$ 86.00 |
|
BRC 113
|
 |
|
|
30 meters of .044" OD X .020" ID Clear FEP or PTFE Tubing for sample lines.
|
BRC 113 |
$ 280.00 |
|
BRC 114
|
|
|
|
30 meters of 1/16" (.0625") OD X .020" ID Teflon Tubing for sample lines.
|
BRC 114 |
$ 280.00 |
|
BRC 115
|
|
|
|
30 meters of 2mm OD X 1mm ID Teflon Tubing for gas lines |
BRC 115 |
$ 300.00 |
|
BRC 118
|
 |
|
|
30 meters of .062" OD X .030" ID Clear FEP or PTFE Tubing for T2100 sample lines.
|
BRC 118 |
$ 290.00 |
|
BRC 119
|
|
|
|
30 meters of .062" OD X .010" ID Clear HP PFA Tubing for Aureus, X-175 &
NX-175 sample lines.
|
BRC 119 |
$ 400.00 |
|
| Sample Line Fittings & Sample Line |
| Description |
Catalog # |
US$ Price |
|
BRC 203
|
 |
|
0.5 meters of .044" OD X .020" ID
Clear FEP Tubing with attached BRC 3 fitting for sample lines.
|
BRC 203 |
$ 26.00 |
|
BRC 203X
|
 |
|
10 Pack of BRC 203:
0.5 meters of .044" OD X .020" ID
Clear FEP Tubing with attached BRC 3 fitting for sample lines.
|
BRC 203X |
$ 150.00 |
|
BRC 204
|
 |
|
0.5 meters of .062" OD X .020" ID
Clear Teflon Tubing with attached BRC 5 fitting for sample lines.
|
BRC 204 |
$ 26.00 |
|
BRC 204A
|
 |
|
12.5 cm of .062" OD X .020" ID
Clear Teflon Tubing with attached BRC 5 fitting for the nebulizer and Ό 28 fitting for the instruments valves.
|
BRC 204A |
$ 50.00 |
|
BRC 204X
|
 |
|
10 Pack of BRC 204:
0.5 meters of .062" OD X .020" ID
Clear Teflon Tubing with attached BRC 5 fitting for sample lines.
|
BRC 204X |
$ 150.00 |
|
BRC 205
|
 |
|
0.5 meters of .062" OD X .020" ID
PFA Tubing with attached 1/4-28 PFA fitting for sample lines.
|
BRC 205 |
$ 27.00 |
|
BRC 205X
|
 |
|
10 pack of BRC205:
0.5 meters of .062" OD X .020" ID
PFA Tubing with attached 1/4-28 PFA fitting for sample lines.
|
BRC 205X |
$ 200.00 |
|
BRC 208
|
 |
|
0.5 meters of .062" OD X .030" ID
Clear FEP Tubing with attached BRC 5 fitting for T2100 sample lines.
|
BRC 208 |
$ 27.00 |
|
BRC 208X
|
 |
|
10 Pack of BRC 208:
0.5 meters of .062" OD X .030" ID
Clear FEP Tubing with attached BRC 5 fitting for T2100 sample lines.
|
BRC 208X |
$ 160.00 |
|
BRC 209
|
 |
|
0.5 meters of .062" OD X .010" ID
PFA Tubing with attached BRC 9 fitting for NX-175 & X-175 sample lines.
|
BRC 209 |
$44.00 |
|
BRC 209X
|
 |
|
10 Pack of BRC 209:
0.5 meters of .062" OD X .010" ID
PFA Tubing with attached BRC 9 fitting for NX-175 & X-175 sample lines.
|
BRC 209X |
$ 260.00 |
|
BRC 210
|
 |
|
0.5 meters of .062" OD X .010" ID
PFA Tubing with attached 1/4-28 PFA fitting for sample lines.
|
BRC 210 |
$ 27.00 |
|
BRC 210X
|
 |
|
10 pack of BRC210:
0.5 meters of .062" OD X .010" ID
PFA Tubing with attached 1/4-28 PFA fitting for sample lines.
|
BRC 210X |
$ 200.00 |
|
BRC 2000
|
 |
|
|
0.5 meters of .062" OD X .020" ID PTFE or PFA with attached Idex 1/4-28 Kel-F fitting for 1/16" sample lines and P652-Kel-F adapter.
|
BRC 2000 |
$ 60.00 |
|
BRC 2000X
|
|
|
|
10 pack of 0.5 meters of .062" OD X .020" ID PTFE with attached Idex 1/4-28 Kel-F fitting for 1/16" sample lines and P652-Kel-F adapter.
|
BRC 2000X |
$ 320.00 |
|
|
|
|
|
T2002, Trace and Legere Fittings |
T2002, Trace and Legere Fittings |
| . |
The T2002, Trace and Legere Nebulizers have Swagelok or barb attachments for the gas lines, and all use the same capillary tubing for the sample lines (0.42" - 0.45" OD). The T2002 ships with 1/4" Swageloks. 1/8 and 4 mm are available if required. Surge Suppressors are available for the T2002 Nebulizers. They are rarely useful for most systems, but are useful for some pumps and chambers.
|
| T2002, Trace and Legere Fittings |
| Description |
Catalog # |
US$ Price |
|
BRC 103
|
|
|
|
3 meters of .044" OD X .020" ID Clear FEP Tubing for sample lines. |
BRC 103 |
$ 54.00 |
|
BRC 113
|
|
|
|
30 meters of .044" OD X .020" ID Clear FEP Tubing for sample lines.
|
BRC 113 |
$ 280.00 |
|
BRC S1
|
| |
|
Surge Suppressor for reducing variations in sample flow due to the peristaltic pump.
|
BRC S1 |
$ 18.00 |
|
BRC S1X
|
 |
|
|
10 pack of Surge Suppressor for reducing variations in sample flow due to the peristaltic pump.
|
BRC S1X |
$ 100.00 |
|
|
|
|
|
| . |
Teflon® is a registered trademark of Chemours Company. In this web page, it refers to PTFE (PolyTetraFluoroEthylene) and/or PFA (Perfluoroalkoxy alkane) and/or FEP (Fluorinated ethylene propylene).
|
|
|
